Grandstream

Grandstream GWN7062E Wifi 6 Router

(No reviews yet) Write a Review
SKU:
GWN7062E
UPC:
6947273704911
MPN:
GWN7062E
Shipping:
See shipping calculator below ↓
  • Grandsream GWN7062E

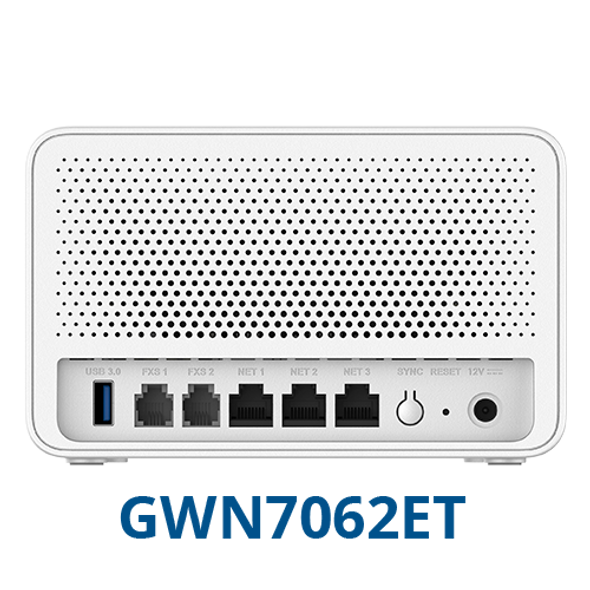

  • Grandsream GWN7062E rear
Your Price: $73.00

Description

Grandstream GWN7062E
GWN Series Dual-Band Wi-Fi 6 Routers

The GWN7062E is a Wi-Fi 6 Router powered by a 1.3GHz dual-core processor to provide Wi-Fi speeds up to 3 Gbps for up to 128 concurrent devices ideal for small-to-medium businesses and home networks.

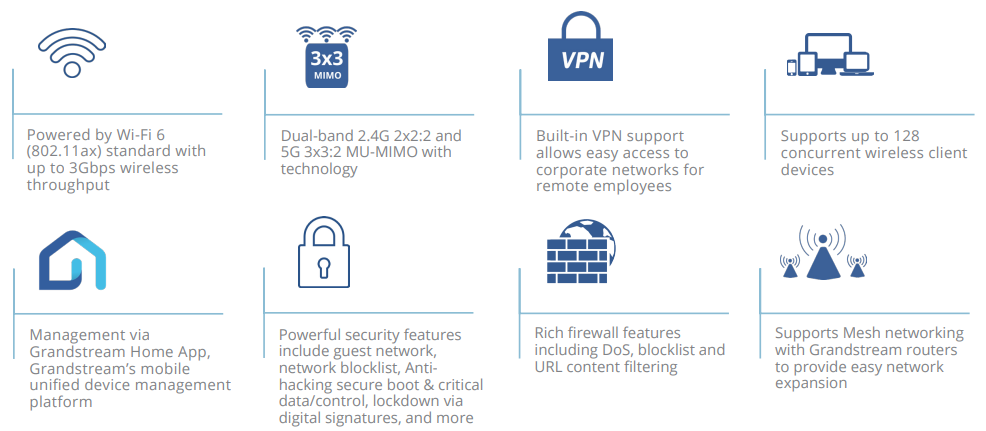

Features

  • Powered by Wi-Fi 6 802.11ax with up to 3Gbps wireless throughput
  • GWN7062E 3x Gigabit ports
  • Dual-band 2.4G 2x22 and 5G 3x32 MU-MIMO with DL/ UL OFDMA technology
  • Built-in VPN support allows easy access to corporate networks for remote employees
  • Supports up to 128 concurrent wireless client devices
  • Secure cloud provisioning through GDMS Networking
  • Powerful security features include guest network network blocklist anti-hacking secure boot & critical data/control lockdown via digital signatures and more
  • Rich firewall features including DoS blocklist and URL content filtering
  • Supports Mesh networking with Grandstream Wi-FI points and routers to provide easy network expansion

The GWN7062E is a secure dual-band AX3000 router powered by the latest Wi-Fi 6 (802.11ax) technology. Ideal for small offices, home offices and remote workers, the GWN7062E provides 2.4G 2×2:2 and 5G 3x3:2 MU-MIMO with XTRA Range technology with beamforming for maximum network throughput and expanded Wi-Fi coverage range, as well as support for wireless Mesh networks. It features a powerful 1.3GHz dual-core processor to provide Wi-Fi speeds up to 3Gbps with up to 128 wireless devices, allowing the GWN7062E to power smart office and home automation, smooth 4K Ultra HD streaming, web meetings, video conferences, online gaming and more. It GWN7062E from AV Mart Australia offers high-performance routing and switching power along with built-in VPN support for secure in-office and inter-office connectivity.

The GWN7062E provides parental controls by managing online time control, blocking inappropriate content, and offering daily and weekly statistics to keep families safe while online. This router also provides enterprise-grade security features to ensure secure Wi-Fi and VPN access, including unique security certificates and random default passwords. GWN7062E supports management via local web user interface, GDMS Networking, and GWN Manager. It also supports real-time management by mobile devices using Grandstream Home, Grandstream’s mobile unified device management platform. By combining accelerated Wi-Fi speeds, with advanced features including VPN and intelligent QoS, the GWN7062E is the ideal router for a growing home, small offices, business network and more.

Grandstream GWN7062E Specifications

Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
Antennas 1x 5GHz: maximum gain 3.4dBi
2x 2.4GHz&5GHz: maximum gain 4.7dBi for 2.4GHz, 4.3dBi for 5GHz
Wi-Fi Data Rates 5G:
IEEE 802.11ax: 7.3 Mbps to 2402 Mbps
IEEE 802.11ac: 6.5 Mbps to 1732 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4GHz radio: 2400-2483.5MHz
5GHz radio: 5150-5895MHz
*Not all frequency bands can be used in all regions
Channel Bandwidth HT 20/40, VHT 20/40/80, HE 20/40/80/160
Security WPA/WPA2, WPA2, WPA2/WPA3, WPA3; anti-hack security boot and critical data/control lockdown via digital signatures; unique security certificate and random default password per device; security firewall including DoS, blocklist and URL content filtering; application monitoring and traffic statistics with DPI
MU-MIMO 2×2:2 2.4GHz
3×3:2 5GHz
Coverage Range Up to 150 square meters
*Coverage range can vary based on environment
Maximum TX Power 2.4G: 24dBm
5G: 26dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity 2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
802.11g: -93dBm@6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm@MCS7;
802.11n 40MHz: -70dBm@MCS7;
802.11ax 20MHz: -60dBm@MCS11;
802.11ax 40MHz: -58dBm@MCS11;

5G
802.11a: -92dBm@6Mbps, -74dBm@54Mbps;
802.11n 20MHz: -73dBm@MCS7;
802.11n 40MHz: -70dBm@MCS7;
802.11ac 20MHz: -67dBm@MCS8;
802.11ac 40MHz: -63dBm@MCS9;
802.11ac 80MHz: -59dBm@MCS9;
802.11ax 20MHz: -60dBm@MCS11;
802.11ax 40MHz: -58dBm@MCS11;
802.11ax 80MHz: -56dBm@MCS11;
802.11ax 160MHz: -52dBm@MCS11;
SSIDs 4 SSIDs total
Concurrent Wireless Clients Up to 128 wireless clients
Networking Interfaces 3x autosensing 10/100/1000Mbps Ethernet ports
Auxiliary Ports 1x SYNC, 1x POWER, 1x RESET Pinhole
Mounting Desktop or wall-mounting
LED 1x tri-color LED for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1p, 802.11e/WMM, DSCP
QoS • Support 8 queues with multiple traffic priority and bandwidth
• APP QoS
• QoS rules
NAT DDNS, Port Forwarding, DMZ, UPnP
VPN Supports 1 VPN tunnel:
• L2TP Client
• PPTP Client
• IPSec Site-to-Site & Client-to-Site
• OpenVPN® Server
• WireGuard® Site-to-Site & Peer-to-Site
WAN Internet Connection Type:
• PPPoE
• PPTP
• L2TP
• Dynamic IP
• Static IP

Dual-WAN Policy:
• Load Balance
• Failover
LAN • DHCP server
• LAN port IP settings
• Client list
• Static address binding
Mesh One router with up to 3 GWN7062E/ET as mesh node
Networking Management • Embedded controller (can only manage itself)
• GDMS (Networking) offers a free cloud management platform for unlimited GWN Routers
• GWN Manager offers premise-based software controller
• TR-069
Power and Green Energy Efficiency USB Type-C power adapter included:
Input: 100~240V 50/60Hz
Output: 5V/3A(15W)

Environmental: Operation: 0°C to 40°C, humidity: 10% to 90% RH (Non-condensing)
Storage: -20°C to 60°C, humidity: 10% to 90% RH (Non-condensing)
Dimensions Unit Dimensions: 140mm(L) × 46mm(W) × 90mm(H)
Entire Package Dimensions: 176.5mm(L) × 170mm(W) × 72mm(H)
Where to buy AV Mart Australia
Unit Weight 185g, Entire Package Weight: 465g
Package Content GWN7062E router, Power Adapter, Ethernet Cable, Quick Installation Guide
Compliance FCC, CE, RCM, IC
